- Core Logic
Intel® C242 Chipset
- Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB, 4GB
* Refer to support page for more information
- Expansion Slots
Total Slot : 3
Slot Location 1 : PCI 32bit/33MHz
Slot Location 5 : PCI-E x8
Slot Location 6 : PCI-E x16
Slot Location 7 : MIO Slot for Audio card
Follow SSI Location#
- Form Factor
ATX (12"x9.6", 305mm x 244mm)
- ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
- Storage
SATA Controller :
Intel® C242 Chipset
6 x SATA3 6Gb/s ports
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode * 1
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
- Networking
4 x Intel® I210AT + 1 x Mgmt LAN
- Graphic
Aspeed AST2500 with 32MB VRAM
- On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x USB 3.0 pin header
1 x USB 2.0 pin header
1 x USB connector* 2
6 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
2 x Serial Port Header
1 x VGA Header
2 x M.2 Connector
1 x Onboard header for optional management card

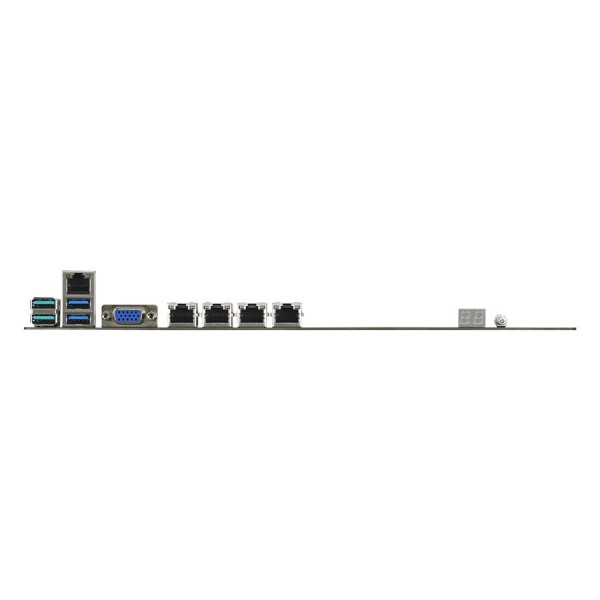

- Back I/O Ports
1 x External Serial Port
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
1 x VGA Port
4 x GbE LAN + 1 x Mgmt LAN
- Management Solution
ASUS Control Center
Optional ASMB9-iKVM for KVM-over-Internet
- Weight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
- Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessories
Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
1 x Plate for LGA1151
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1151
- Monitoring
CPU Temperature
Fan RPM
- Note
*1 2 x M.2 (NGFF 22110/2280/2260/2242, support PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal)
*2 1 x USB 3.0 connector (Type A USB socket)
