PT-FRZ55 |
Projector type | 1-Chip DLP™ projector |
DLP™ chip | |
Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
Display method | DLP™ chip x 1, DLP™ projection system |
Number of pixels | 2,304,000 (1920 x 1200 pixels) |
Light source | Laser diodes |
Light output | 5,000 lm*1/5,200 lm (Center)*2 |
(When [Picture Mode] is set to [Dynamic], [Daylight View] is set to [OFF], [Dynamic Contrast] is set to [OFF], [Light Output] is set to [100 %], and [Auto Power Save] is set to [OFF]) |
Time until light output declines to 50 %*3 | 20,000 hours (Normal) |
Resolution | 1920 x 1200 pixels |
Contrast ratio*1 | 20,000:1 (Full On/Full Off, Picture Mode: Dynamic, Dynamic Contrast 1, Operating Mode: Normal) |
Screen size (diagonal) | 1.02–7.62 m (40–300 in), 16:10 aspect ratio |
Center-to-corner zone ratio*1 | 85% |
Lens | Fixed (throw ratio: 0.8:1), powered focus, F 1.75, f 11.9 mm |
Lens shift (From the origin point of the lens mounter) | |
Vertical | ±4.4 % (powered) |
Horizontal | ±2.1 % (powered) |
Keystone correction range | Vertical: ±25 °, Horizontal: ±20 ° |
Installation | Ceiling/floor, front/rear, free 360-degree installation |

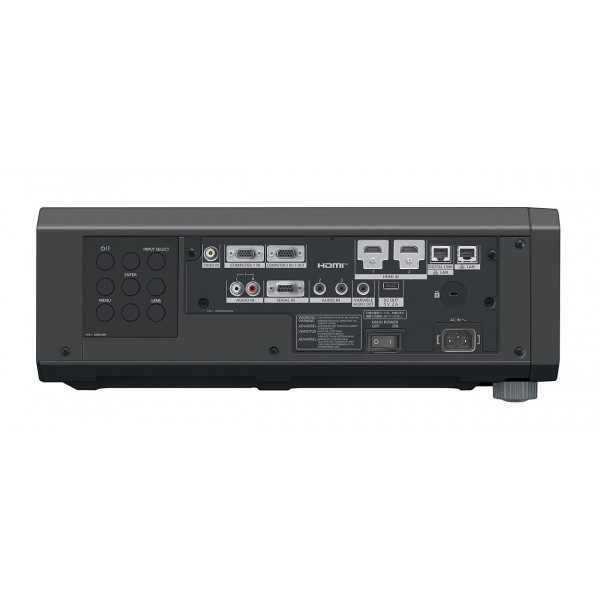

Terminals | |
HDMI 1 IN/HDMI 2 IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input*4), CEC supported |
COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
COMPUTER 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
VIDEO IN | Pin jack x 1 (composite video) |
AUDIO IN 1 | Pin jack x 1 (L, R) |
AUDIO IN 2/3 | M3 x 1/M3 x 1 |
AUDIO OUT | M3 x 1 (Variable) |
SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.3 compatible, Deep Color compatible, 4K/60p signal input*4 |
LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
USB | USB connector (Type A) x 1 (Output 5 V/2 A) |
Power supply | AC 100–240 V, 50/60 Hz |
Power consumption | 465 W |
Cabinet materials | Molded plastic |
Operation noise*1 | 27 dB (Quiet Mode), 32 dB (Normal Mode) |
Dimensions (W x H x D) | 498 x 168*5 x 481 mm (19 5/8? x 6 5/8?*5 x 18 15/16? ) |
Weight*6 | Approx. 16.4 kg (36.1 lbs) |
Operating environment | Operating temperature: 0–45 °C (32–113 °F), operating humidity: 10–80 % (no condensation) |
Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software |
