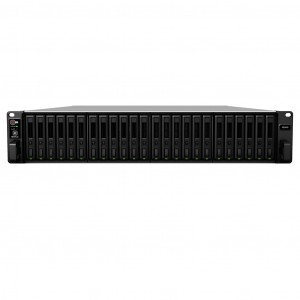

Сетевое хранилище Synology FS3400

https://shop.ivk-service.com/712013-thickbox/setevoe-khranilisshe-synology-fs3400.jpg

Уточняйте цену у менеджера

Внешние порты: Порт USB 3.0, Порт расширения, RJ-45, Расширение PCIe; Сертификация: FCC, CE, VCCI, BSMI, EAC, RCM, KC; Размер (ВхШхГ): 88 x 482 x 724; Вес: 14.9 кг;.

Детальнее...

‹ ›

ID: 223788. Код: FS3400

Описание
Характеристики

https://www.synology.com/en-us/products/FS3400

CPU
CPU Model	Intel Xeon D-1541
CPU Architecture	64-bit
CPU Frequency	8-Core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory*
System Memory	16 GB DDR4 ECC RDIMM
Memory Module Pre-installed	16 GB (16 GB x 1)
Total Memory Slots	4
Memory Expandable up to	128 GB (32 GB x 4)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Drive Bays	24
Maximum Drive Bays with Expansion Unit	48 (RX1217sas) / 72 (RX2417sas)
Compatible Drive Type* (See all supported drives)	2.5" SAS HDD 2.5" SAS SSD 2.5" SATA SSD
Maximum Internal Raw Capacity	184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	552.96 TB (184.32 TB + 7.68 TB drive x 48) (Capacity may vary by RAID types)
Maximum Single Volume Size*	200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only) 108 TB
Hot Swappable Drive
Notes	"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more) Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB or 200TB if upgraded to 32GB RAM or more.

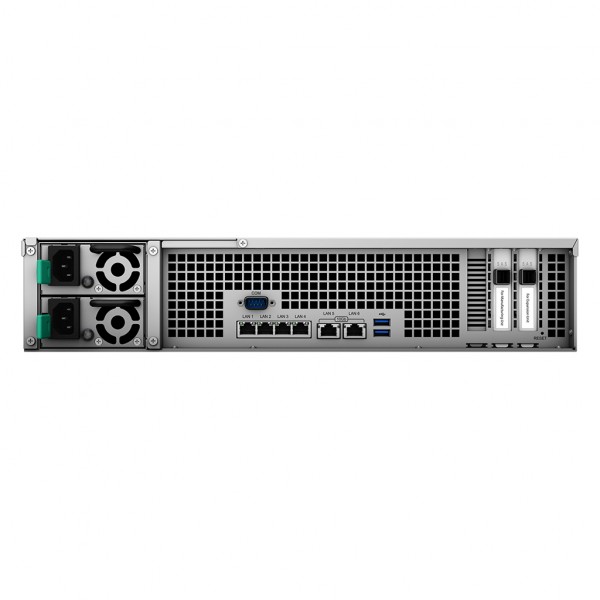

External Ports
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
USB 3.0 Port	2
Expansion Port	1
PCIe
PCIe Expansion	1 x Gen3 x8 slot (x8 link)
Add-In-Card Support	PCIe Network Interface Card (Learn more)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
Weight	14.9 kg
Rack Installation Support	4-post 19" rack (Synology Rail Kit - RKS1317 )
Notes	The rail kit is sold separately
Others
System Fan	80 mm x 80 mm x 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	57 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	500W
Redundant Power Supply
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60Hz, Single Phase
Power Consumption*	313.84 W (Access) 125.77 W (HDD Hibernation)
British Thermal Unit	1,070.86 BTU/hr (Access) 429.15 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	EAC VCCI RCM KC FCC CE BSMI
Warranty	5 Years
Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Power consumption is measured when fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s). Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75?C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number	256
Maximum iSCSI Target Number	256
Maximum iSCSI LUN	512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
File Services
File Protocol	CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections	4,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)	10,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts	16,000
Maximum Local Groups	512
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	32
Synology High Availability
Log Center
Syslog Events per Second	3,000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2016
Citrix Ready
OpenStack
Add-on Packages (Learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Synology Chat
Maximum Users	6,000
Notes	The number of concurrent HTTP connections for Synology Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed.
Document Viewer
exFAT Access (Optional)
Synology MailPlus / MailPlus Server
Free Email Accounts	5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users	1,100
Maximum Server Performance	4,471,000 emails per day, approx. 136GB
Notes	The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Snapshot Replication
Maximum Snapshots per Shared Folder	1,024
Maximum of System Snapshots	65,536
Surveillance Station
Maximum IP cam (Licenses required)	100 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*	3000 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1200 FPS @ 3M (2048x1536) 700 FPS @ 5M (2591x1944) 500 FPS @ 4K (3840x2160)
Total FPS (H.265)*	3000 FPS @ 720p (1280x720) 3000 FPS @ 1080p (1920x1080) 2400 FPS @ 3M (2048x1536) 1300 FPS @ 5M (2591x1944) 800 FPS @ 4K (3840x2160)
Total FPS (MJPEG)*	1300 FPS @ 720p (1280x720) 700 FPS @ 1080p (1920x1080) 500 FPS @ 3M (2048x1536) 400 FPS @ 5M (2591x1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files	5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients	2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes	For tested models with expandable memory, the maximum amount of RAM was installed. Exceeding the limits above may result in longer response time in file operations. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users	3,400
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
Recommended Virtual Machine Instances	16 (Learn more)
Recommended Virtual DSM Number (Licenses required)	16 (including 1 Free License)
Notes	Virtual Machine Manager is not supported on hosts running Synology High Availability. The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections	40
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	Surveillance Device License Pack D4RD-2666-16G DDR4 ECC RDIMM* D4RD-2666-32G DDR4 ECC RDIMM Expansion Unit: RX2417sas X 2 Expansion Unit: RX1217sas X 2 Synology Ethernet Adapter E10G17-F2 Synology Ethernet Adapter E10G18-T1 Synology Ethernet Adapter E10G18-T2 Synology Rail Kit Sliding - RKS1317 VS360HD VS960HD
Notes	It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.

Основное
Тип	сетевое хранилище
Внешние порты	Порт USB 3.0 /x2 Порт расширения RJ-45 /1GbEx4, 10GbEx2 Расширение PCIe /Gen3 x8 slot (x8 link)
Сертификация	FCC, CE, VCCI, BSMI, EAC, RCM, KC
Поддержка установки в стойку	19" (комплект для монтажа приобретается отдельно)
Питание
Автозапуск после сбоя питания	Да
Включение/выключение питания по расписанию
Входное напряжение переменного тока	100-240 В
Частота (одна фаза)	50/60 Hz
Блок питания/адаптер	500 Вт
Температура
Рабочая температура	5°C – 35°C (40°F – 95°F)
Температура хранения	-20°C – 60°C (-5°F – 140°F)
Файловая система
Внутренние диски	EXT4 Btrfs
Внешние диски	EXT4 EXT3 FAT NTFS HFS+ Btrfs
Управление хранилищем
Максимальное кол-во внутренних томов	256
Макс. кол-во целей iSCSI	256
Макс. кол-во номеров логического устройства iSCSI	512
Моментальные снимки/клонирование LUN iSCSI, Windows ODX
Кэш-память чтения/записи SSD
SSD TRIM
Прочее
Простая замена системного вентилятора
Режим скорости вентилятора	Режим максимальной скорости Режим охлаждения Тихий режим
Уровень шума	57 дБ(A)
Уровни RAID	1, 5, 6, 10, 0, JBOD, Basic, F1
Миграция RAID	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Потребление энергии	313.84 Вт (доступ)
Механизм аппаратного шифрования
Дополнительно	Функция Wake on LAN/WAN

Характеристики подключаемых модулей
Тип совместимого диска	2.5" SATA HDD 2.5" SAS HDD 2.5" SAS SSD
Максимальная внутренняя емкость	184.32 TB (7.68 TB drive x 24)
Максимальная чистая емкость с устройствами расширения	552.96 TB (184.32 TB + 7.68 TB drive x 48)
Максимальный размер одного тома	200 TB B (32GB RAM required, for RAID 5 or RAID 6 groups only), 108 TB
Учетная запись и общая папка
Максимальное количество локальных учетных записей пользователей	16000
Максимальное количество локальных групп	512
Макс. кол-во общих папок	512
Максимальное кол-во заданий синхронизации общих папок	32
Диспетчер High Availability
Центр журналов
Кол-во событий системного журнала за секунду	3000
Оборудование
Процессор	Intel Xeon D-1541
Архитектура процессора	64-bit
Частота ЦП	Восемь ядер 2.1 ГГц (base)/ 2.7 ГГц (turbo)
Системная память	16 ГБ /DDR4 ECC RDIMM
Отсек(и) для дисков	24
Физические характеристики
Размер (ВхШхГ)	88 x 482 x 724 мм
Вес	14.9 кг
