| CPU | Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 500 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 8 GB SO-DIMM DDR3L (2 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR3L For dual-DIMM configuration, you must use a pair of identical DDR3L modules. |
| Flash Memory | 4GB (Dual boot OS protection) |

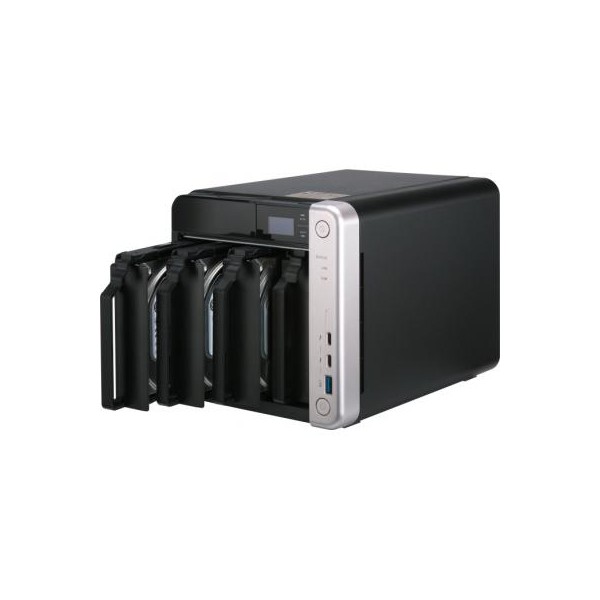

| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 SSD Slot | 2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card) The M.2 SSD is not included as standard. |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) Pre-installed QM2 PCIe card |
| Jumbo Frame | |
| Thunderbolt Port | 2 (Thunderbolt™ 3) |
| PCIe Slot | 1 x PCIe Gen 2 (x2), pre-installed with a QM2 expansion card (QM2-2S10G1TB) that includes a 10GbE 10GBASE-T port and two M.2 SATA SSD slots. The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD, please check the compatibilities before purchase.
PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 3.2 Gen 1 port | 5 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe adapter (need to replace the pre-installed QM2 card) |

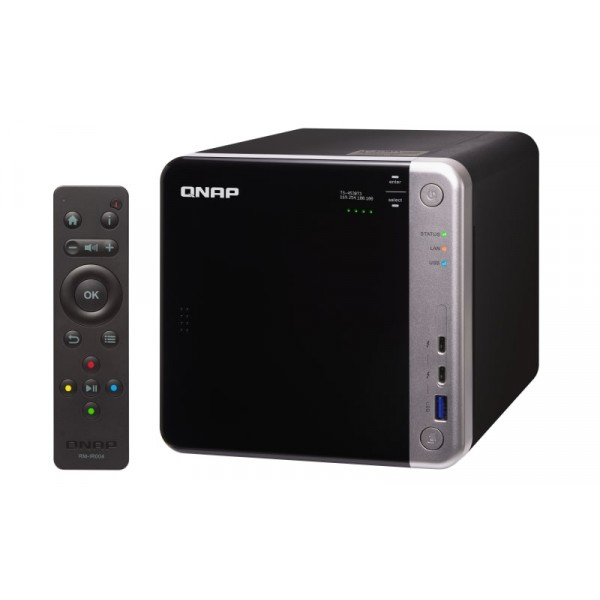

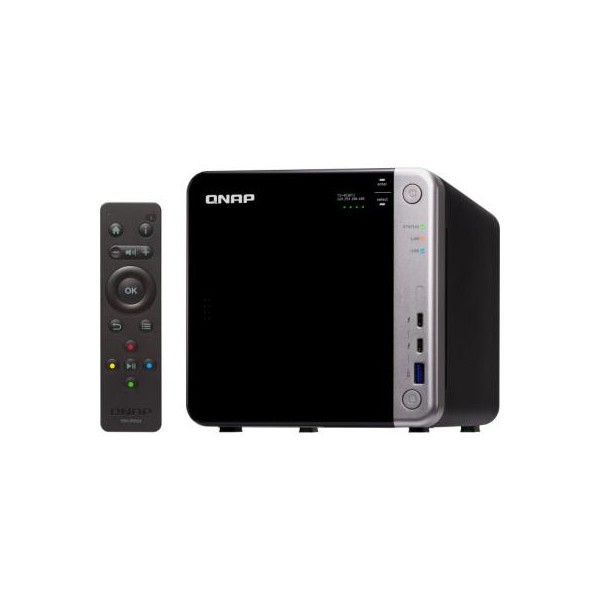

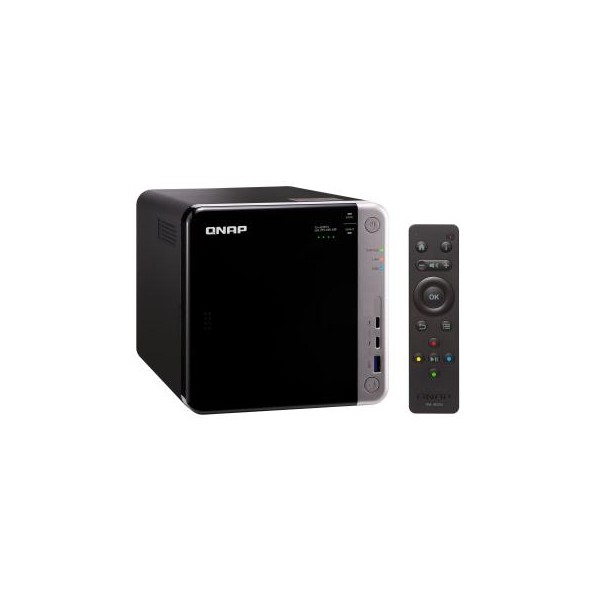

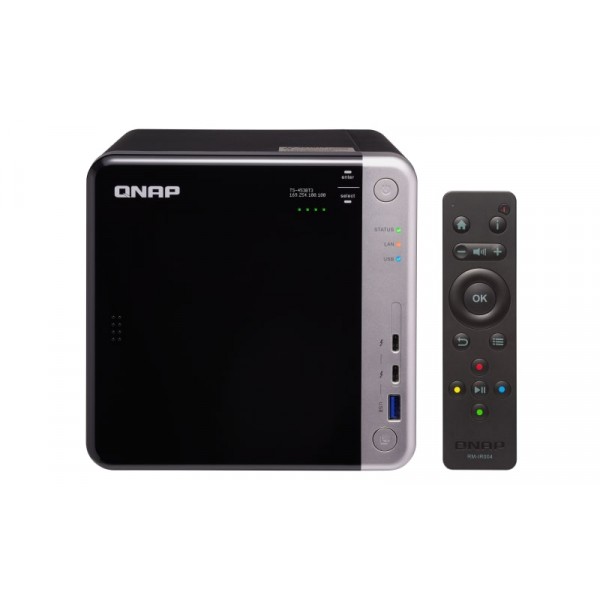

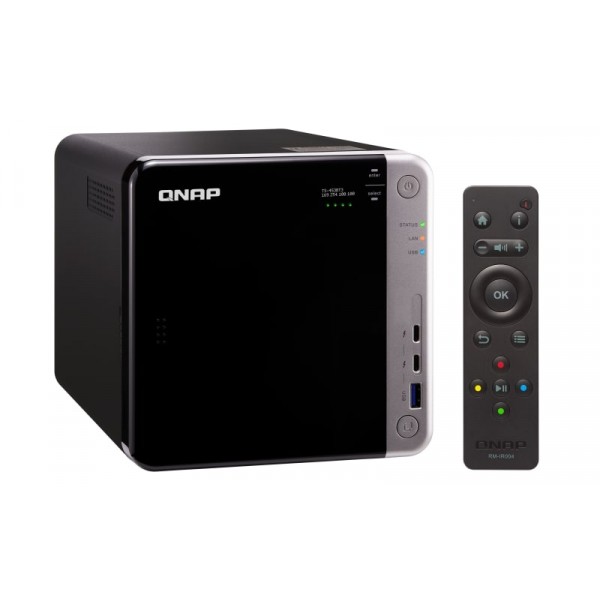

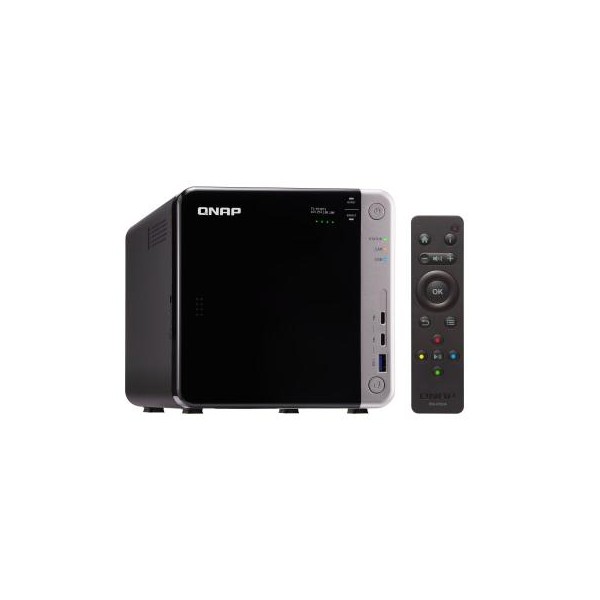

| IR Sensor | (RM-IR004, RM-IR002, & MCE) |
| HDMI Output | 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | 2 x 3.5mm dynamic microphone input jacks |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier) You cannot use the speakers and the line-out jack simultaneously. |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-4 |
| LCD Display/ Button | Monochrome OLED display with capacitive sensing Enter and Select buttons |
| Buttons | Power, USB copy, Reset, Capacitive touch buttons (select, enter) |
| Dimensions (HxWxD) | 168 × 170 × 226 mm |
| Weight (Net) | 2.51 kg |
| Weight (Gross) | 4.05 kg |
| Operating temperature | 0 ~ 40?C (32?F ~ 104?F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) |
| Power Supply Unit | 120W adapter, 100-240V |
| Power Consumption: Operating Mode, Typical | 38.101 W |
| Fan | System: 1 x 120mm |
| Sound Level | 16.1 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Max. Number of Concurrent Connections (CIFS) | 800 |
