| CPU | Intel® Celeron® J1800 dual-core 2.41 GHz processor (burst up to 2.58 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics |
| Floating Point Unit | |
| Hardware-accelerated Transcoding | , up to 1080P |
| System Memory | 4 GB SODIMM DDR3L (1 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR3L When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. |
| Flash Memory | 512MB (Dual boot OS protection) |

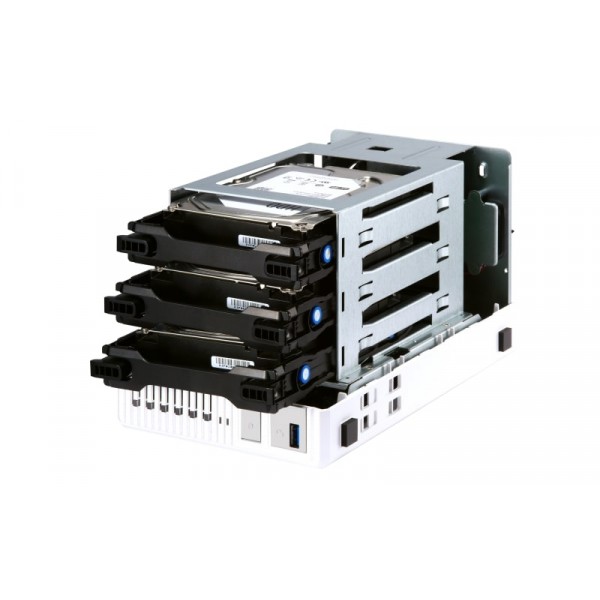

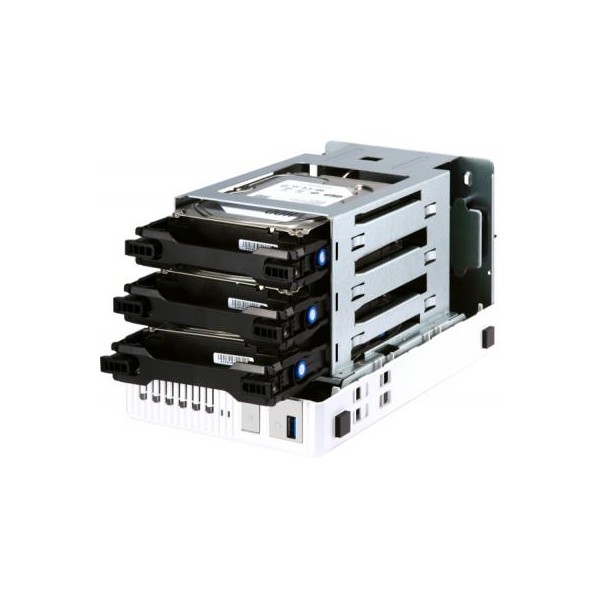

| Drive Bay | 3 x 3.5-inch SATA 6Gb/s, 3Gb/s Bay 1, 2: SATA 3Gbps
Bay 3: SATA 6Gbps |
| Drive Compatibility | 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives A 2.5" drive tray base is needed to install a 2.5" SSD/HDD |
| Hot-swappable | |
| M.2 SSD Slot | 2 x M.2 2280 NVMe 500 MB/s slots |
| SSD Cache Acceleration Support | Drive bay 3
M.2 Slots 1 to 2 |
| Gigabit Ethernet Port (RJ45) | 1 |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| HDMI Output | 1, HDMI 1.4a (up to 1080p) |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~3, M.2 SSD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 142 × 150 × 260.1 mm |
| Weight (Net) | 1.64 kg |
| Weight (Gross) | 2.69 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) |
| Power Supply Unit | 65W adapter, 100 - 240V |
| Power Consumption: HDD Sleep Mode | 18.56 W |
| Power Consumption: Operating Mode, Typical | 26.22 W Tested with drives fully populated. |
| Fan | 1 x 90mm, 12VDC |
| Sound Level | 21.8 db(A) |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | |
| Max. Number of Concurrent Connections (CIFS) | 700 |
